Enpass Hub on Azure App Services using Sidecar

In this guide, we'll outline the steps to deploy the Enpass Hub on Azure App Services using Sidecar. We're assuming you have basic knowledge of Docker and Azure cloud management.

Prerequisites

1. An active subscription of Azure cloud services.

2. Enpass Hub use PostgreSQL database for persisting data. This guide assume you already have an PostgreSQL database running. Make sure the PostgreSQL engine version is 14 or higher.

   • You can use Azure Database for PostgreSQL for creating a new database before proceeding. - https://learn.microsoft.com/en-us/azure/postgresql/flexible-server/quickstart-create-server-portal

3. An email server configured to send outgoing emails (e.g., SMTP server such as Microsoft Exchange Online, Gmail SMTP, or any other provider).

Deploy initial app

1. Login into your Azure portal. Goto → App services.

2. Click on Create → Web App

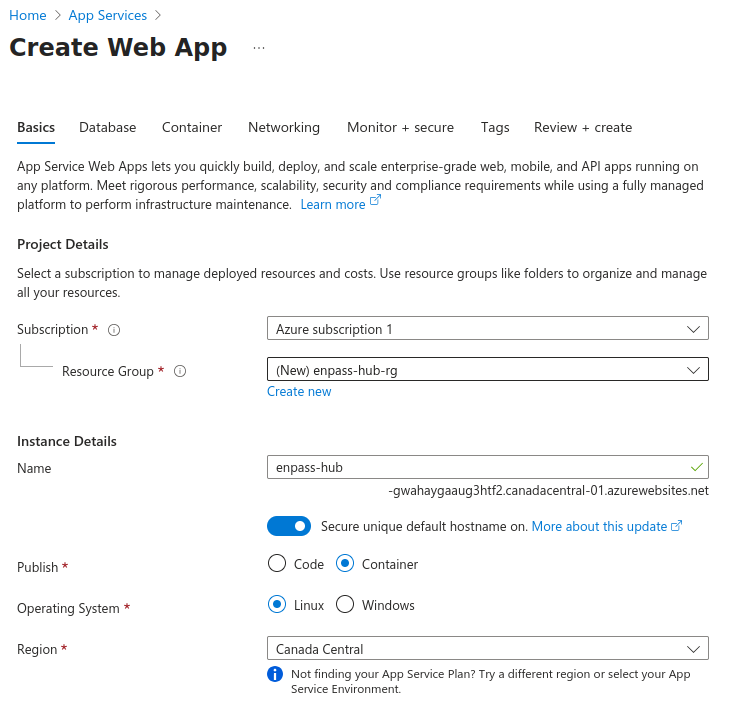

3. Under Project Details Section:

   • Choose a valid Subscription.

   • Add Resource Group as:

     enpass-hub-rg


• Under Instance Details section add Name as “enpass-hub“:

  enpass-hub


• Select “Container” for Publish option.

• Select “Linux“ as Operating System option.

• Select Region that suits best to your requirements.

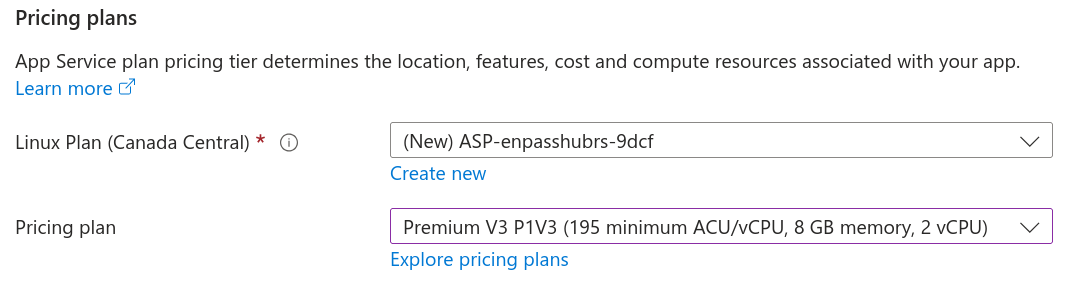

4. Under Pricing Plan Section:

5. Fill other required fields and press “Next : Database”.

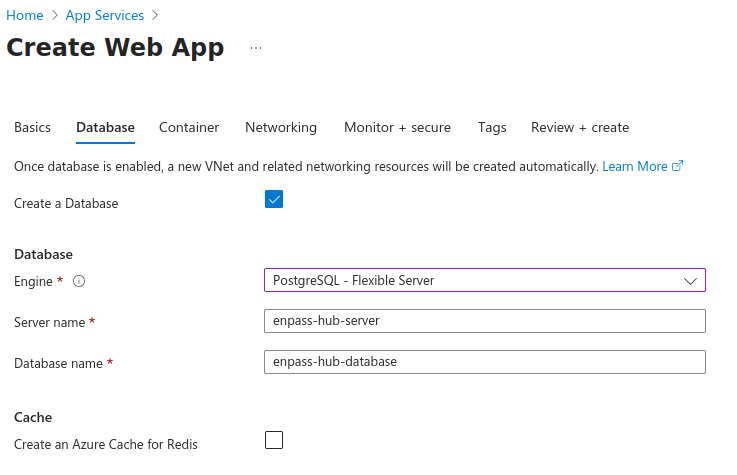

6. Next it will ask you to configure Database, Refer the below screenshot to the DB Setup Config.

6. Fill required fields and press “Next : Container”.

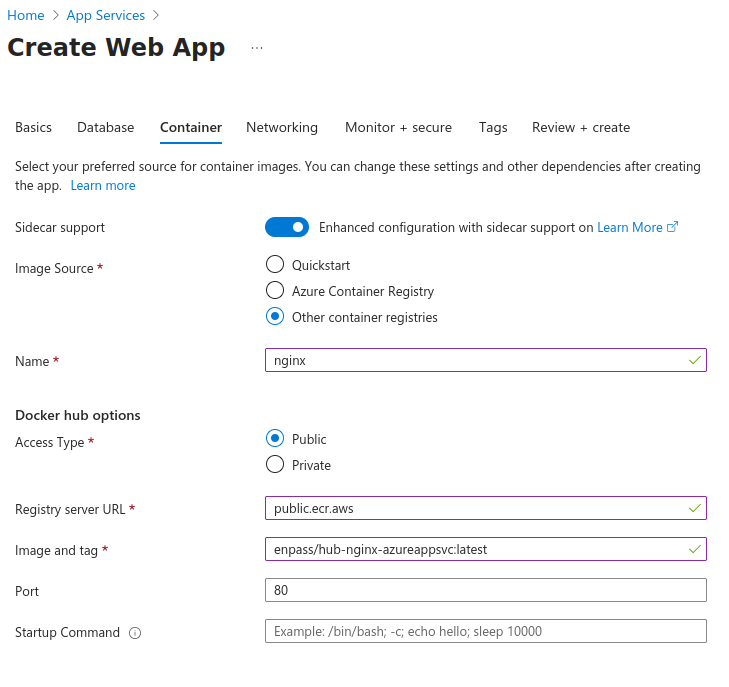

7. Under Container Section:

   • Toggle the Sidecar support button to "Enabled" position.

   • Select Image Source as “Other container registries“.

   • Container Name will be:

     nginx


   • Select Access Type as “Public“.

   • Add Registry server URL value as:

     public.ecr.aws


   • Add Image and tag value as:

     enpass/hub-nginx-azureappsvc:latest


   • Add Port value as:

     80


   • Leave the Startup Command field empty.

8. Click “Next” and configure additional options as your requirements.

9. Click on “Review + Create“, and review the configurations.

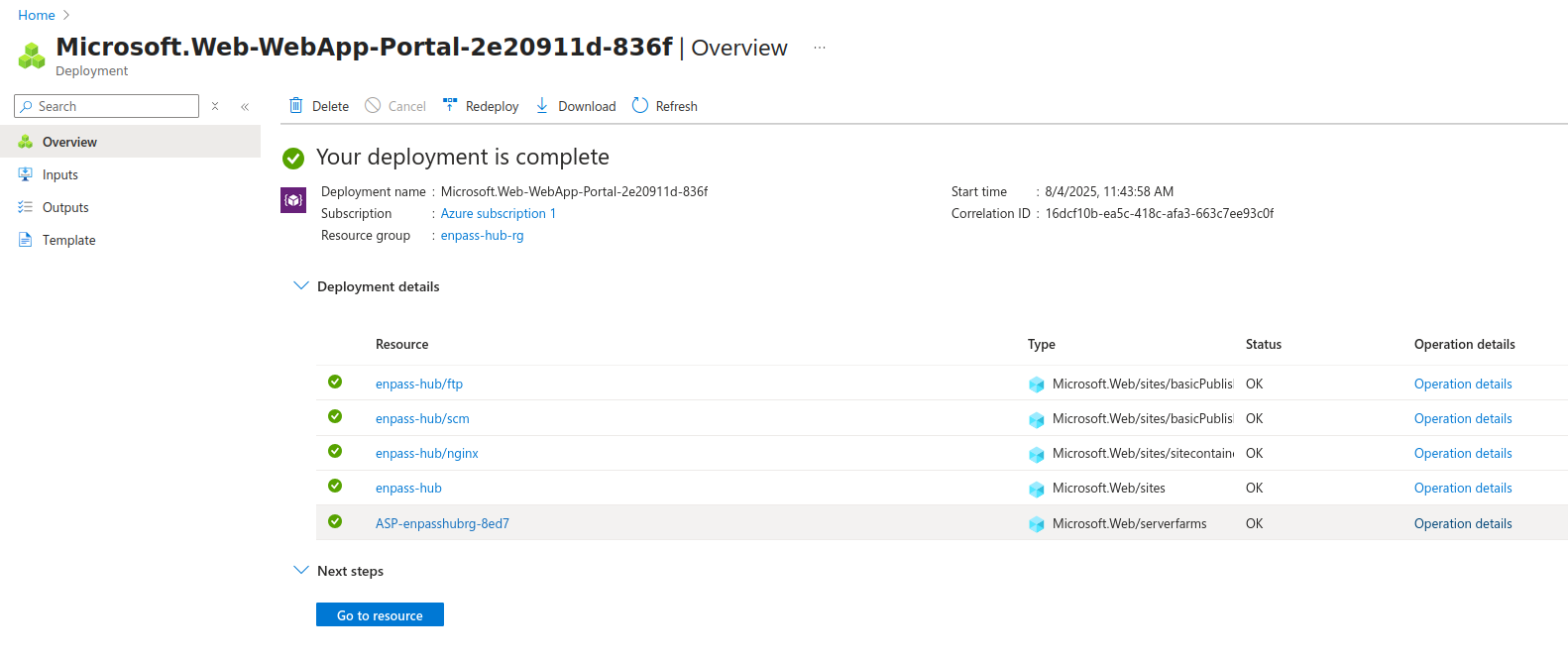

10. Finally click on “Create“ button and wait till deployment is complete.

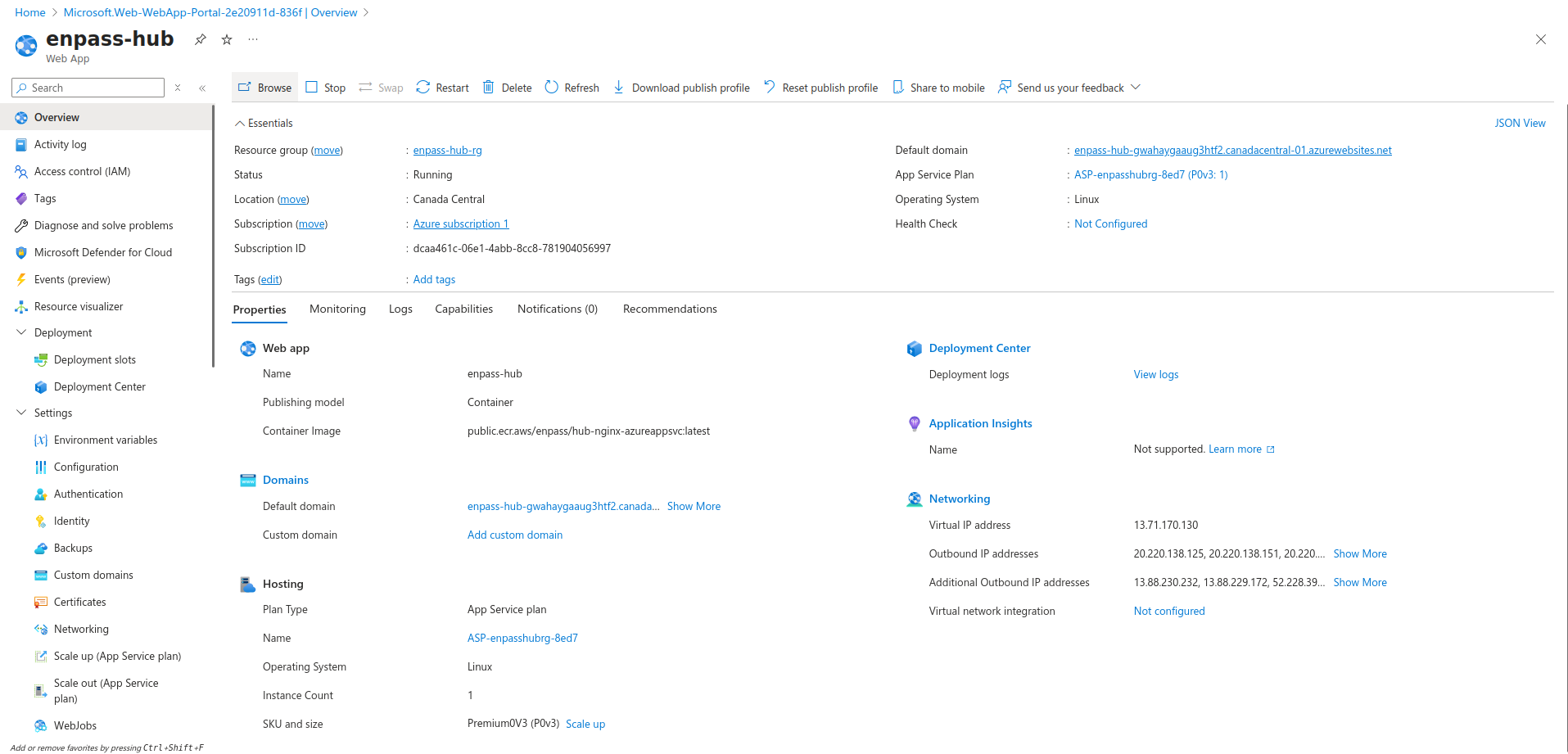

10. Once deployment is complete. Click on “Go to resource” button.

Configure App Settings

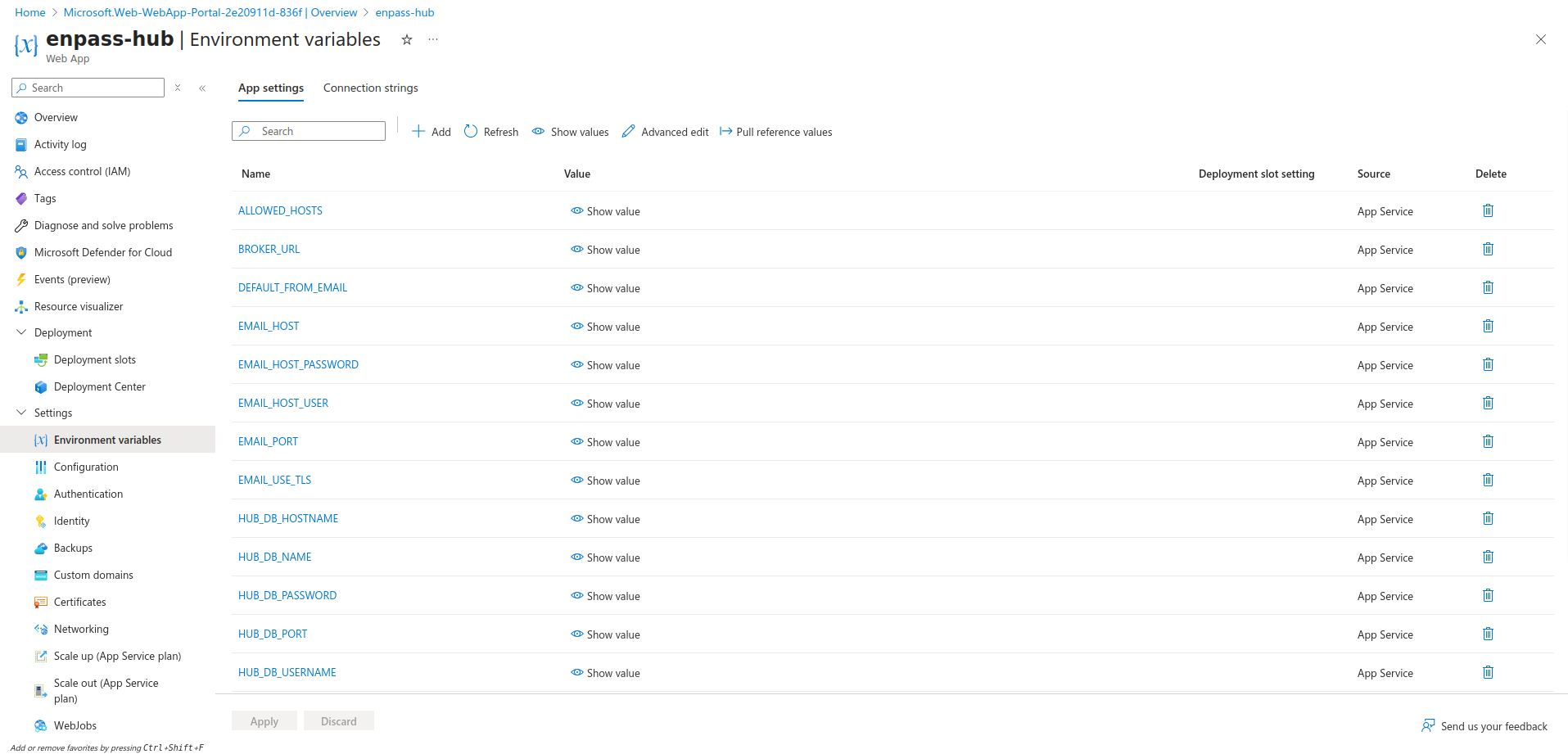

Go to “Settings” → “Environment variables”. Add following app settings as key-value pairs.

Application Secrets and Host Settings

• HUB_STATIC_URL: The static files will be copied into /usr/src/app/static/, you will need additional configurations to serve via nginx. You can use static files directly from our CDN for convenience.

  HUB_STATIC_URL=https://hub-static.enpass.io/static/


• HUB_SECRET_KEY: A randomly generated key used for cryptographic signing, typically for session cookies.

  HUB_SECRET_KEY=3zq(sx&$cf4@p0-EXAMPLE_KEY-9it5(le9)%zv6


tr -dc '[A-Za-z0-9!"#$%&(){}*+,-./:;<=>?@^_`~|]' < /dev/urandom | head -c 50 > hub_secret_key.txt

• ALLOWED_HOSTS: A comma-separated list of host/domain names associated with the Enpass Hub server. Replace http://yourappname.azurewebsites.net with Default domain mentioned previously:

  ALLOWED_HOSTS=yourappname-random-string.azurewebsites.net,localhost,your-subdomain


Message Queue Settings

• BROKER_URL: The URL or connection details for the Redis message broker used in the application's message queue system. Use following as we will run redis as part of our web app service:

  BROKER_URL=redis://localhost:6379/0


Database Settings

Enpass Hub requires a PostgreSQL database to function, and these settings determine the parameters for the connection to that database. They include the Hostname or IP Address of the database server, the database name, and the credentials for accessing it.

• HUB_DB_HOSTNAME, HUB_DB_NAME, HUB_DB_USERNAME, HUB_DB_PASSWORD, HUB_DB_PORT:

  • Example:

    HUB_DB_HOSTNAME=hub-database.example.tld
    HUB_DB_NAME=hub-database
    HUB_DB_USERNAME=my-username
    HUB_DB_PASSWORD=my-password
    HUB_DB_PORT=5432


Email Settings

Email settings are key for the application's communication mechanisms. Enpass Hub uses these configurations to send out emails, such as OTPs and notifications. These settings specify the outgoing mail server details, including the hostname, user credentials, port, and the type of security to be used for the connection. The SERVER_EMAIL and DEFAULT_FROM_EMAIL define the sender address for system-generated and outgoing emails, respectively.

• EMAIL_HOST, EMAIL_HOST_PASSWORD, EMAIL_HOST_USER, EMAIL_PORT, EMAIL_USE_TLS, SERVER_EMAIL, DEFAULT_FROM_EMAIL:

  • Example:

    EMAIL_HOST=smtp.example.com
    EMAIL_HOST_PASSWORD=mysecretpassword
    EMAIL_HOST_USER=myemail@example.com
    EMAIL_PORT=25
    EMAIL_USE_TLS=True
    SERVER_EMAIL=noreply@example.com
    DEFAULT_FROM_EMAIL=noreply@example.com


After adding all these application settings, click “Apply“ and then “Confirm” to save the app settings restart web app. Wait for few minutes.

Configure Deployment

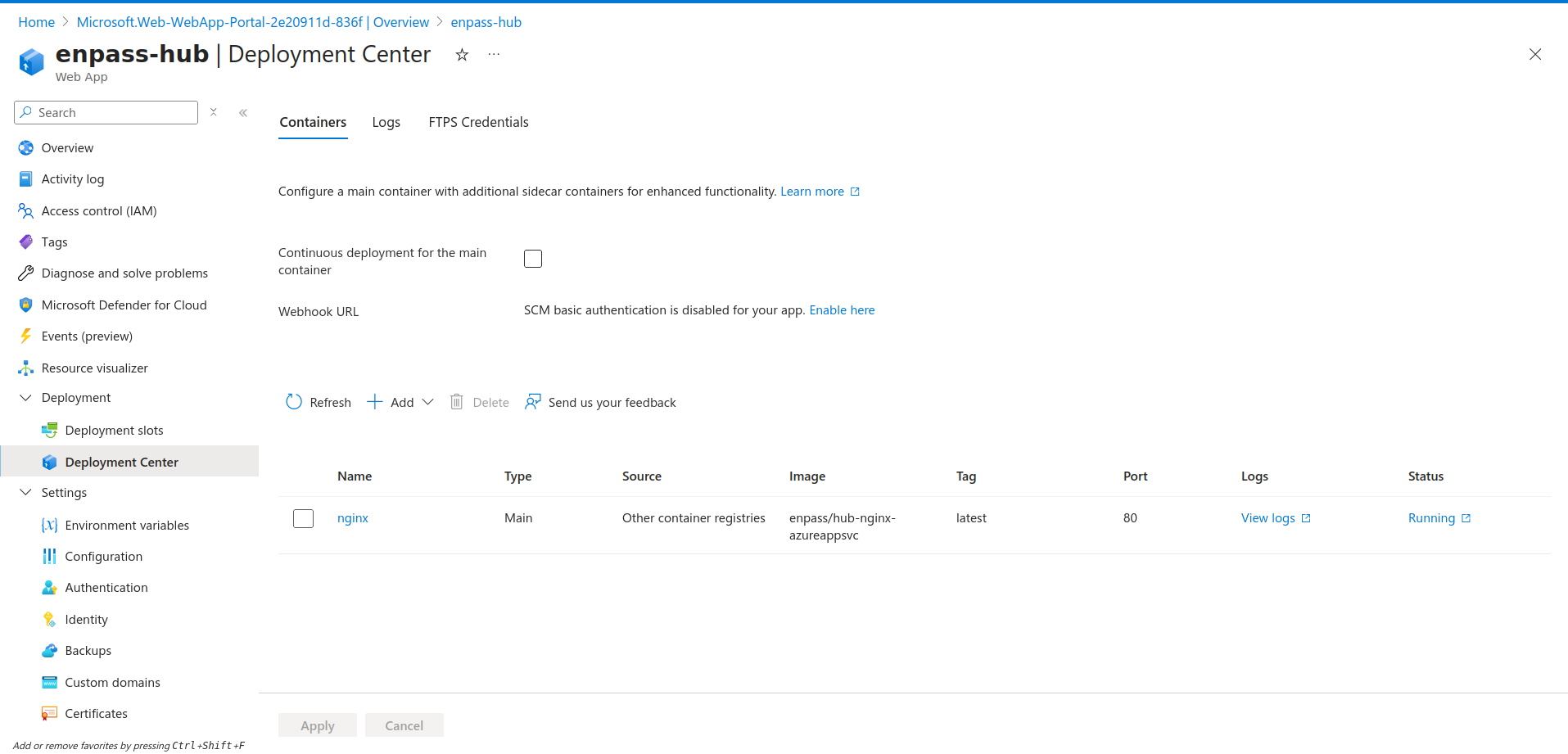

Go to “Deployment” → “Deployment Center” in side panel. Under Containers tab, follow the below mentioned instructions.

1. Go to “Add“ → “Custom Container“.

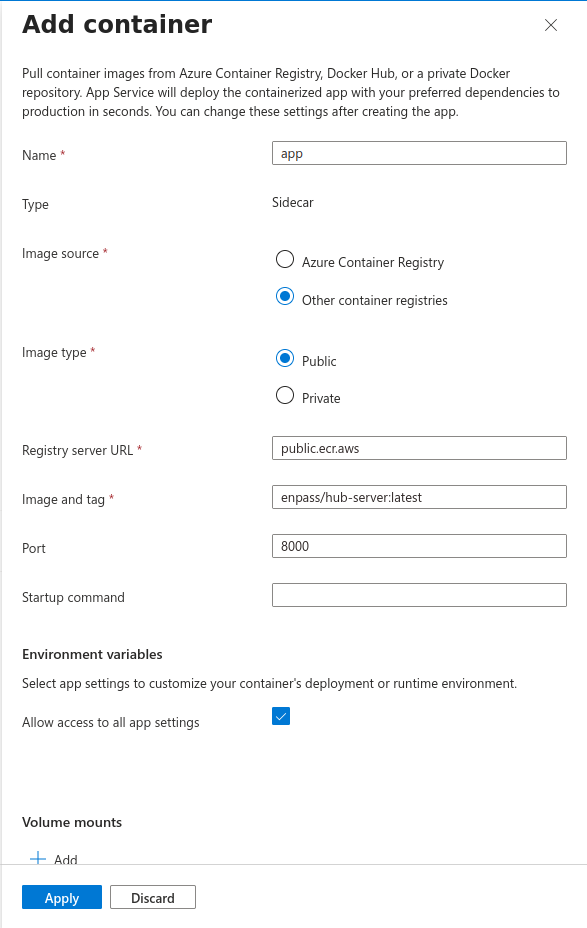

2. Under Add Container Section:

   • Container Name will be:

     app


   • Select Image source as “Other container registries“.

   • Select Image type as “Public“.

   • Add Registry server URL value as:

     public.ecr.aws


   • Add Image and tag value as:

     enpass/hub-server:latest


   • Add Port value as:

     8000


   • Leave the Startup Command field empty.

   • Check the “Allow access to all app settings“ under “Environment variables“ section.

   • Then click on “Apply“ Button.

3. Now Go to “Add“ → “Sidecar extension“.

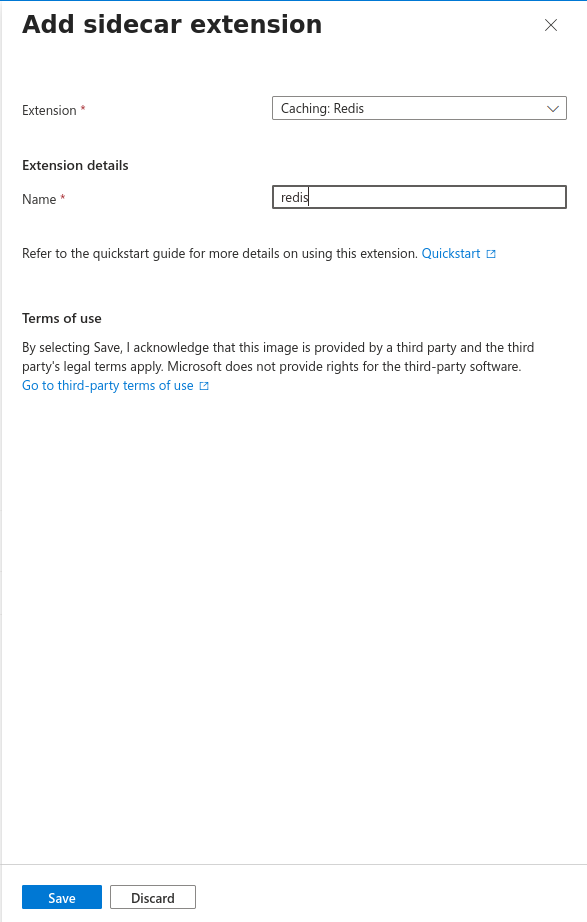

4. Under Add sidecar extension Section:

   1. Choose Extension value as “Caching: Redis“.

   2. Under Extension Details, add Name as:

      1. redis


   3. Then click on “Save“ Button as the bottom.

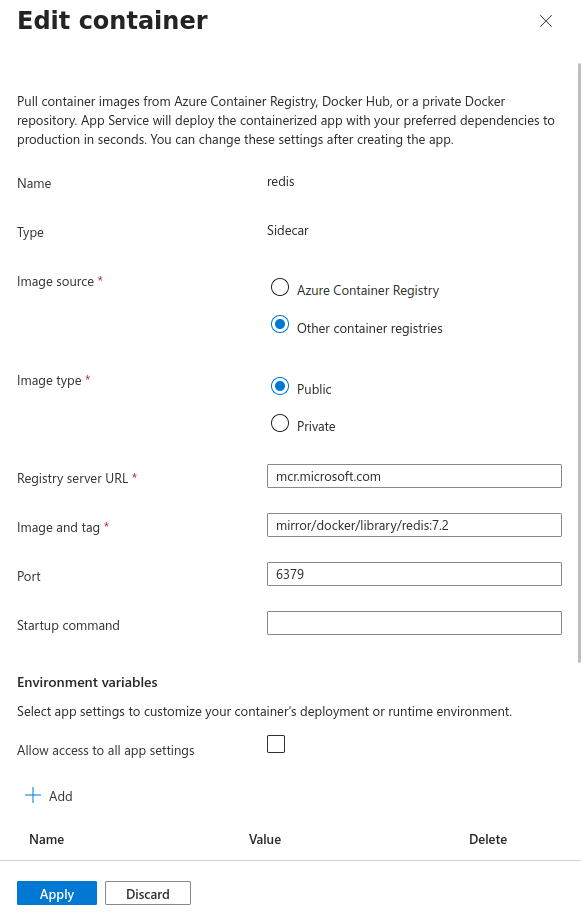

5. Now Click on “redis“ container to open its settings.

6. Add Port value as:

   1. 6379


7. Leave the rest of the fields untouched and click on “Apply“ Button.

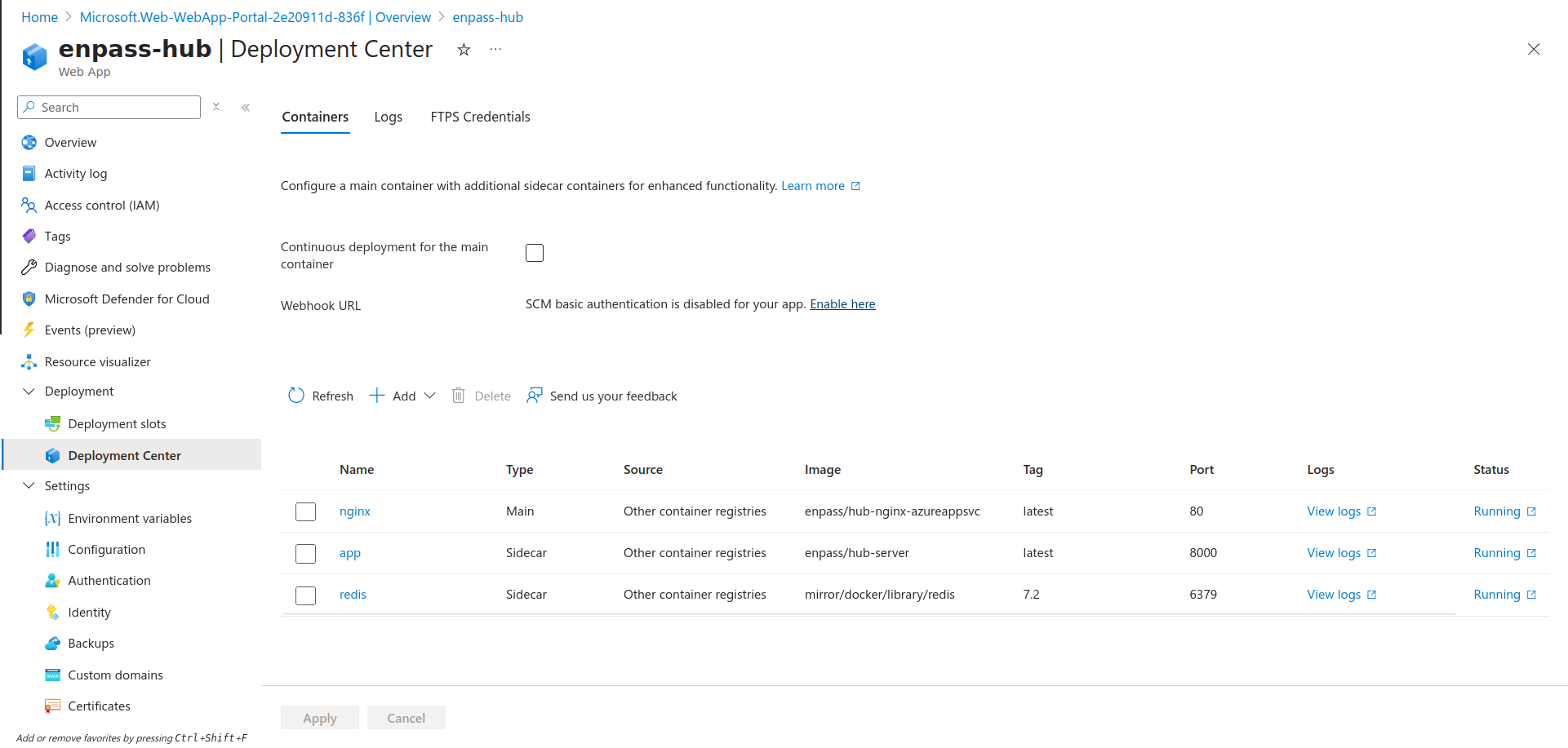

8. Now wait until each container Status changes to “Running“.

Check your setup

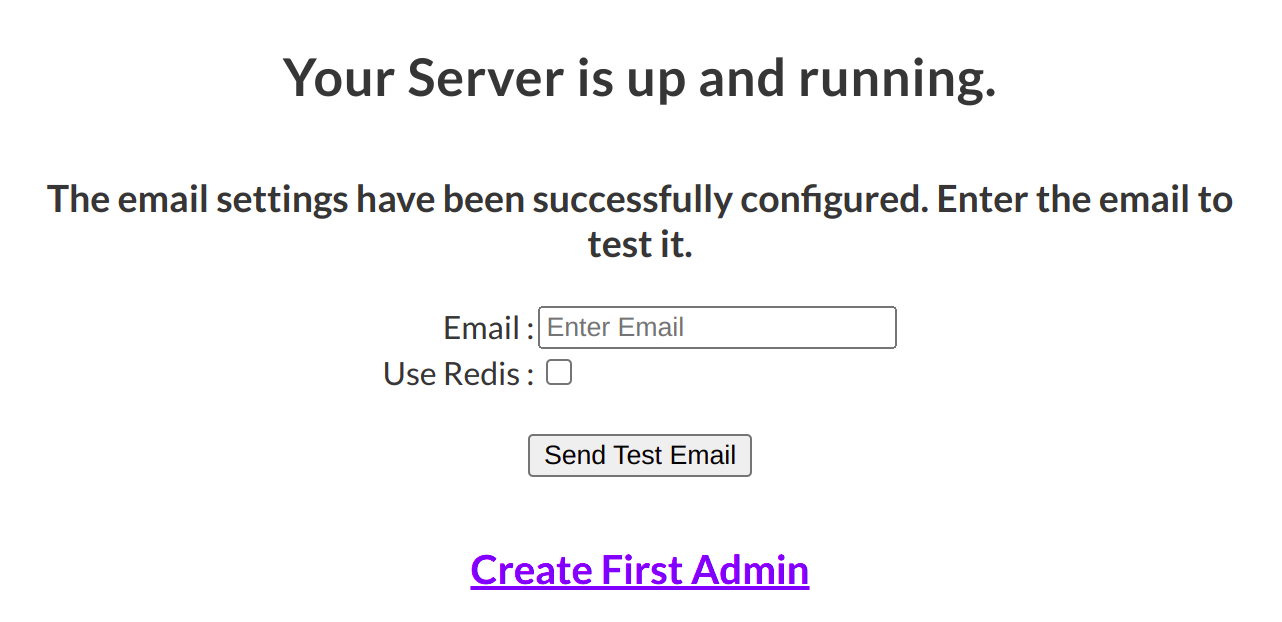

Visit the URL you've created for your Enpass Hub (e.g., https://yourappname.azurewebsites.net/ , as previously mentioned Default domain) to confirm it's live.

• Enter a test email address, and click Send Test Email to confirm your email configuration is functioning in your setup correctly.

• Enter a test email address, enable the Use Redis option, and click Send Test Email to confirm Redis is functioning correctly in your setup.

Additional Considerations

Before going to production, consider the following measures:

• Updates: Make sure to regularly check for updates to the Enpass Hub Docker image. If there are updates, you just have to restart your Enpass Hub Application from Azure App Service console and it will auto fetch the latest docker images of the respective conainters.

• Database: Regular backups of your PostgreSQL database are critical for disaster recovery. For better control and data persistence. Additionally, consider encrypting your database to add an extra layer of security to your sensitive data.

Next steps

By adhering to this guide, you should now have successfully self-hosted Enpass Hub. It's now ready for integration with Enpass. To continue with the integration process, please follow the steps outlined in the Connecting Enpass Hub to Your Admin Console.
